Hebei Qinyi: Precision Roller, Empower Logistics Transportation New Efficiency

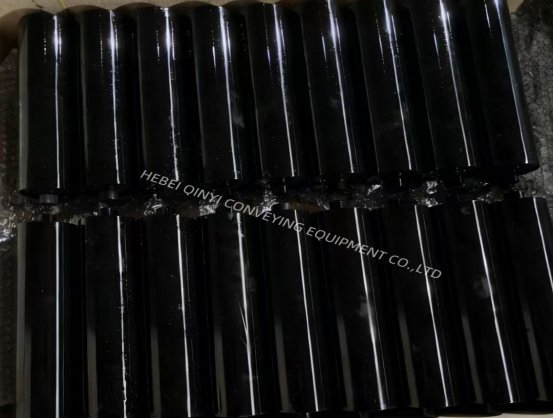

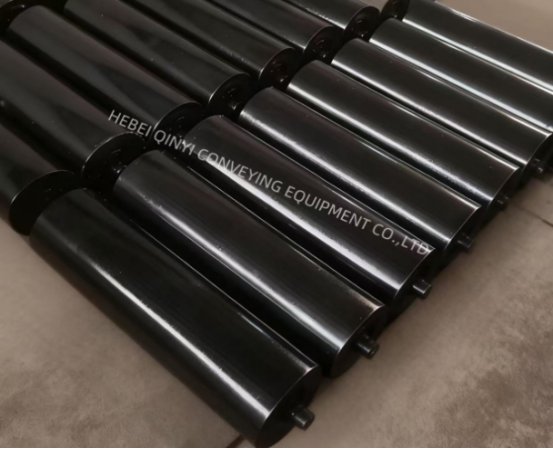

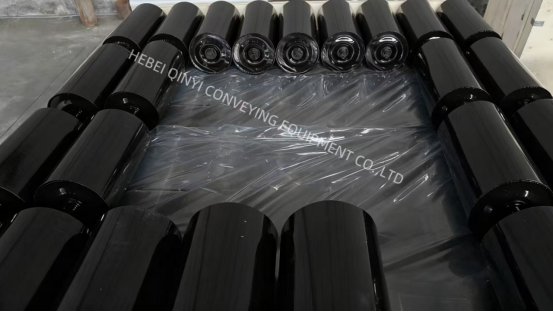

A batch of premium conveyor idlers manufactured by Hebei Qinyi Conveying Equipment Co., Ltd. (HEBEI QINYI CONVEYING EQUIPMENT CO., LTD) has recently been completed and is ready for shipment to clients nationwide. The production workshop photos showcase these idlers with uniform surface coatings, high gloss finishes, and meticulously executed details, demonstrating the company's solid expertise in conveyor equipment manufacturing.

As a critical component of belt conveyors, idlers play a vital role in supporting the conveyor belt and reducing friction. Their quality directly impacts the operational efficiency and service life of the entire conveyor line. Hebei Qinyi Conveying Equipment, with years of expertise in this field, has developed idlers that excel in wear resistance, corrosion resistance, and operational stability through rigorous material selection and manufacturing processes. These idlers are widely applicable across various industries, including mining, ports, chemical processing, and logistics.

In modern industrial production, efficient material handling systems are a key factor in ensuring production capacity. Hebei Qinyi Conveying Equipment, with its professional technical expertise and relentless pursuit of quality, provides reliable conveying solutions for clients across industries. This helps enterprises reduce costs and improve efficiency in production processes, while contributing to the development of China's logistics and conveying equipment industry.

The Core Value and Industry Impact of Idlers

As the "hidden engine" of belt conveyors, idlers play three critical roles: load-bearing protection, energy conservation, and stable guidance. They evenly distribute belt and material weight to prevent tearing, optimize rotating structures to reduce motor energy consumption by 10-15%, and ensure smooth operation to minimize maintenance frequency. The quality difference between premium and standard idlers translates into significant cost savings. For example, in a mine with an annual throughput of 5 million tons, using Qinyi idlers reduces conveyor line failures from three monthly incidents to one quarterly occurrence, extends belt replacement cycles by 50%, and saves approximately 300,000 yuan annually in maintenance and consumables costs. Additionally, their ≤65dB low-noise design facilitates green factory certification, while the modular structure enables seamless integration with smart conveyor systems for real-time operational monitoring, making them an essential component for industry technological upgrades.

Qinyi Roller's Quality Assurance System

 Excellence stems from end-to-end precision control. Material-wise, the casing employs quenched and tempered Q235B steel (with 440MPa tensile strength and 25% higher impact resistance than standard steel), while corrosion-resistant 304/316 stainless steel is selected. Bearings utilize high-precision components from top-tier brands paired with universal lubricants for extreme temperatures (-20°C to 80°C). Manufacturing-wise, automated production lines achieve millimeter-level precision, with wall thickness tolerances ≤±0.1mm. The "shot blasting + dual-layer electrostatic coating" process ensures national Grade 1 coating adhesion, maintaining rust-free performance for 10,000 hours. Structural innovation features a "dual-lip seal + labyrinth dustproof" design achieving IP65 protection, while cold-press assembly reduces rotational resistance to ≤1.5N (far below industry standard 2N). Quality control spans three stages: raw materials → semi-finished products → finished products, covering mechanical properties, dimensional accuracy, and G6.3 dynamic balance. With 99.8% product pass rate, this system delivers reliability through rigorous testing.

All the key points of selecting and maintaining roller

Scientific selection and maintenance are key to maximizing the efficiency of idlers. The selection process involves three steps: choose specifications based on material characteristics (for heavy loads, select Φ159mm or larger; for light loads, Φ89mm-Φ108mm; for corrosive environments, stainless steel), determine types according to operating conditions (high-temperature resistant models for high temperatures, anti-corrosion coated models for humid environments), and match models with conveying parameters (use large-diameter high-speed idlers for conveyor widths ≥1.2m and speeds ≥2m/s). Qinyi can provide free customized solutions. Four daily maintenance tips can extend the lifespan by 50%: clean surface dust quarterly, inspect rotation status monthly (replace immediately if abnormal noise or jamming is detected), replenish specialized grease every 3-6 months, and ensure the axis is perpendicular to the conveyor belt and spacing is uniform (horizontal 1.2-1.5m, heavy load 0.8-1.0m) during installation.

Intelligent Upgrade of Logistics Transportation Based on Precision Roller

With the advancement of the "dual carbon" goals and the development of intelligent manufacturing, the logistics and transportation industry is accelerating its transition toward "efficiency, energy conservation, and intelligence," making the value of idlers as core components increasingly prominent. Hebei Qinyi Conveying Equipment has broken through industry bottlenecks with "precision manufacturing" and led product upgrades through "technological innovation," providing reliable conveying solutions for mining, port, chemical, and other industries.

For customized solutions or product details, feel free to contact Hebei Qinyi Conveying Equipment Co., Ltd.

FAQ

Q1: How to troubleshoot abnormal noises or jamming in the idler roller?

A: Check for three aspects: ① Inspect the bearing for oil depletion or damage; ② Verify if the idler roller is misaligned with the conveyor frame; ③ Check for foreign objects in the roller. If self-checking proves difficult, contact Qinyi's after-sales team for remote assistance.

Q2: How to determine if the idler roller needs replacement?

A: Replacement is recommended under these conditions: ① Surface wear depth exceeds 2mm; ② Sudden noise increase with noticeable vibration during operation; ③ Irreversible bearing seizure. Qinyi idler rollers' service life can be predicted through intelligent monitoring systems, enabling more systematic replacement planning.

Q3: How to prevent damage to the idler roller during transportation?

A: Featuring "customized packaging with shock-absorbing materials", each roller is individually protected. The entire batch undergoes rigorous drop and vibration tests to guarantee undamaged delivery to the customer's site.

Q4: Are the roller dimensions fixed? Can they be customized?

A: Qinyi supports full-size customization, allowing adjustments to parameters like roller diameter, length, and wall thickness based on the customer's conveyor model and material characteristics to meet personalized needs.

Q5: How effective is the bearing seal of the idler roller?

A: The Qinyi roller features a dual-seal design with built-in dust and water-resistant seals in the bearing housing, effectively blocking dust and moisture to prevent bearing seizure. It is engineered for challenging industrial environments with high dust and humidity, and its sealing performance has passed rigorous waterproof and dustproof tests.
